Using Rich Presence in Game

This how-to walks you through how to use rich presence in your game.

Prerequisites

• A LootLocker account

• An existing game in the Web Console

• Rich Presence Enabled in the Web Console

• Presence Enabled in the SDK

Rich Presence

Rich Presence does not require any changes for setup in the SDK.

Sending Status Changes

When sending state changes for a player, you need to provide:

• A status name

  • E.g. "main_menu", "level_1", "settings_menu"

• Metadata (Optional)

  • You can include metadata when sending the state update

    • E.g. "build_version", "game_fps_count"

Unity

Sending a Presence status is as simple as calling a function.

// Example code of a function being called when the player enters a Game Over state
public void SendGameOverPresenceStatus()
{
    Dictionary<string, string> presenceDetails = new Dictionary<string, string>()
    {
        {"device", SystemInfo.deviceModel },
        {"unity_version", Application.unityVersion}
    };
    LootLockerPresenceManager.UpdatePresenceStatus("game_over", presenceDetails);
}

Unreal

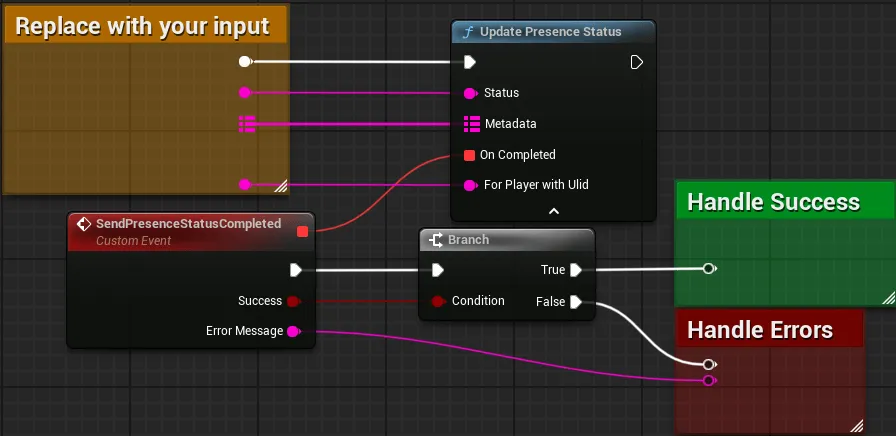

Blueprint example of updating presence status

REST

Presence uses a Websocket connection. First initialize a user session with REST for any of the authentication methods. When the user is authorized, open up a websocket connection to ws://domain_key.lootlocker.com/game/presence/v1 with the first message being:

{"token": "the_signed_in_users_session_token"}

You will get back a response saying if you were authenticated or not:

{"authenticated":true}

The web socket will disconnect automatically after 1 minute of no activity. We recommend to send a ping once per minute to cover any network delays or interruptions. If the Websocket is disconnected, you will need to reconnect again.

{"type":"ping"}

Response:

{"type":"pong"}

To send Rich Presence Statuses, send a message with the following structure:

{
    "metadata": {
        "key1": "value1",
        "key2":"value2"
    },
    "status": "game_status_to_send"
}

Out of Focus / Pause behaviour

When Auto Connect and Disconnect On Pause is enabled Presence will reconnect and resend the last status that was sent when Presence reconnects.

Conclusion

In this how-to we have used Rich Presence to send a change of game status. To learn how to interpret this information, continue to the View Presence in Web Console.
